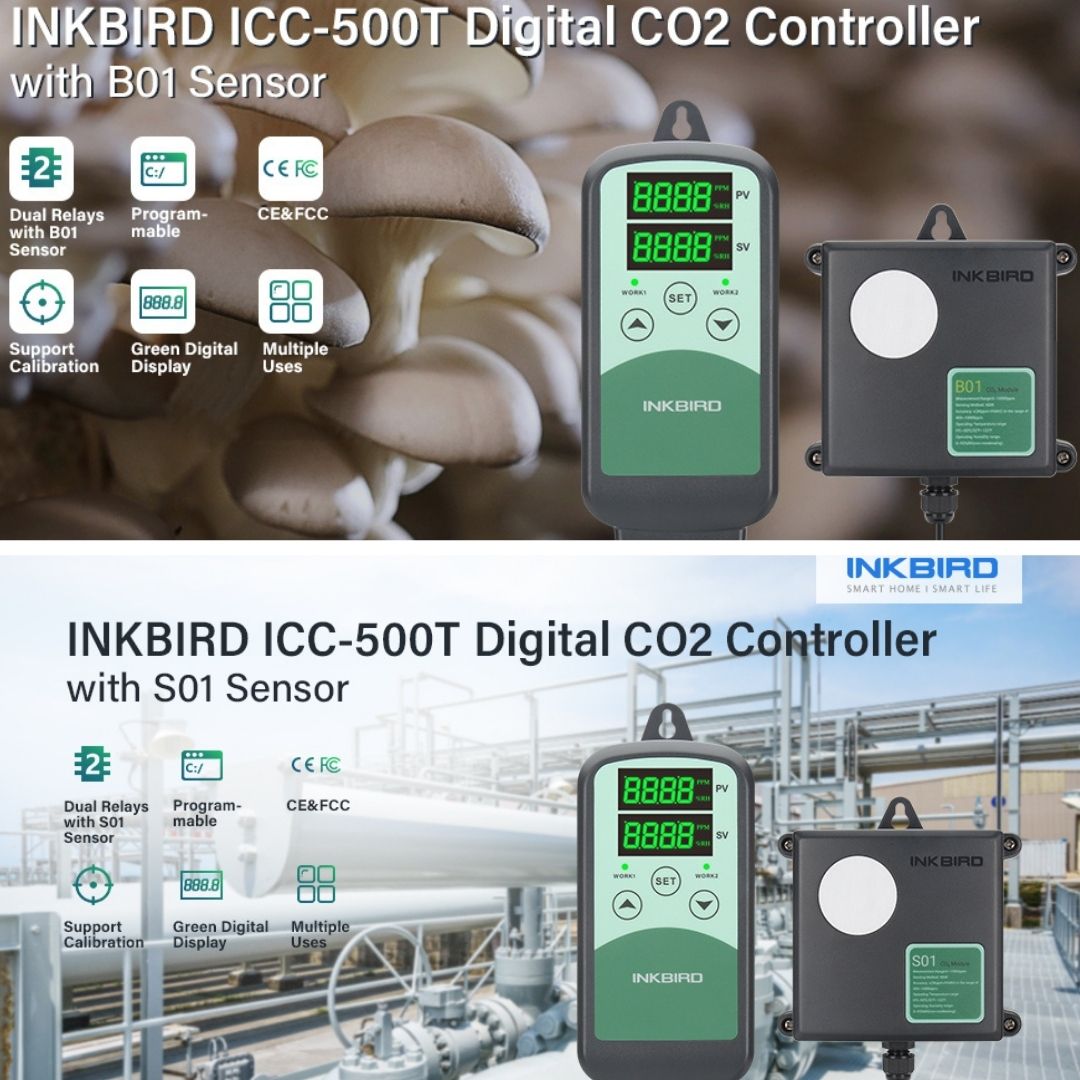

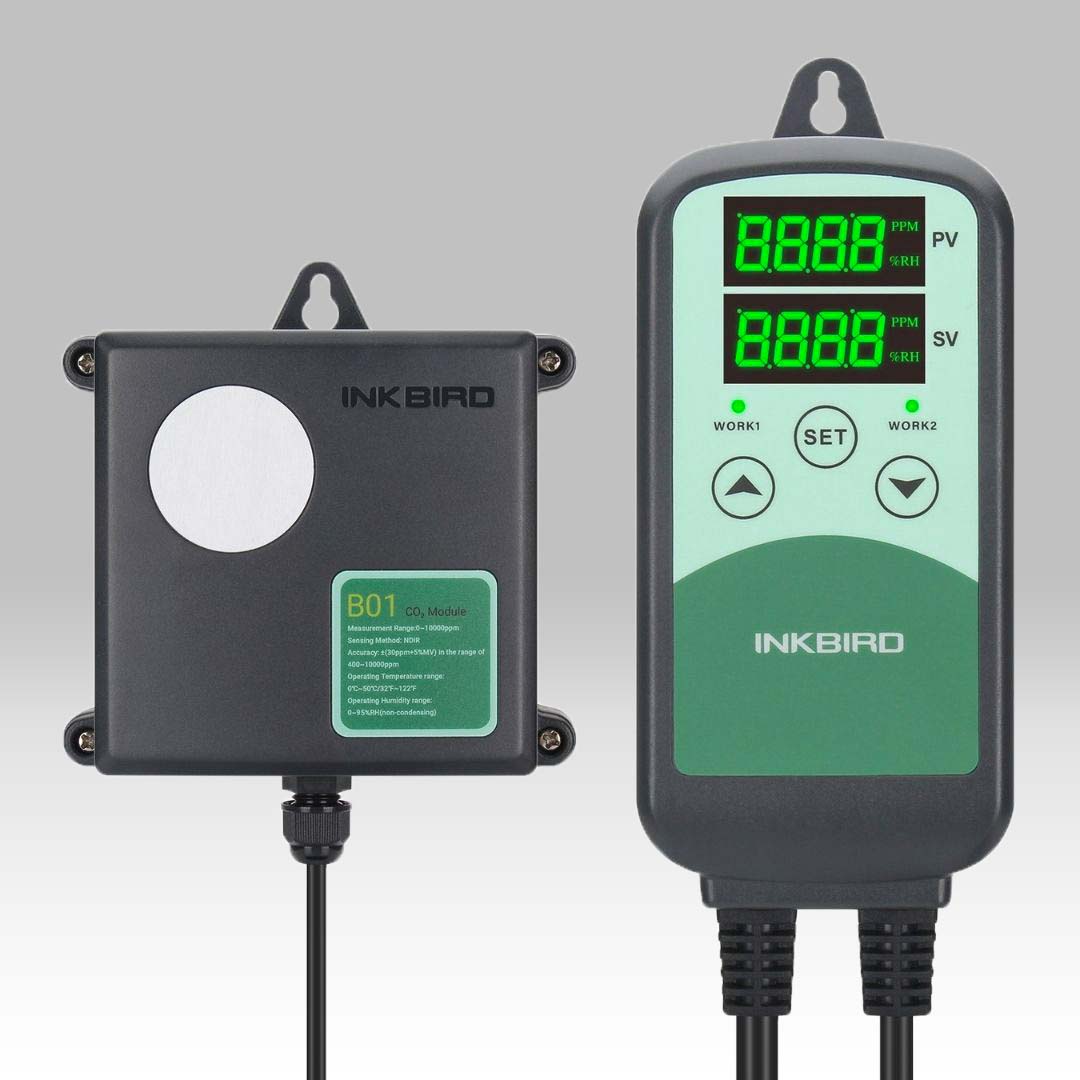

INKBIRD ICC-500T CO2 Controller

The INKBIRD ICC-500T C02 Controller is a device that can help regulate the level of carbon dioxide (CO2) in a grow space. This can be beneficial for plants because CO2 is an essential component of photosynthesis, the process by which plants convert sunlight into energy. By maintaining an optimal level of CO2 in the grow space, the ICC-500T can help plants grow more efficiently and potentially produce higher yields.

Main Features of ICC-500T CO₂ controller with S01 sensor

• Plug and play, simple operation.
• Dual relays, are able to connect with the CO₂regulator or generator and the exhaust fan simultaneously.
• Dual readouts, displays the current measured CO₂ concentration and the set
• CO₂ concentration simultaneously.
• CO₂ calibration.
• Programmable high/low CO₂ concentration alarm.
• Widely applied in ventilation system, building control and HVAC equipment.

Specification of ICC-500T CO₂ Controller

• Input Power: 100~240Vac 50/60Hz 10A MAX
• Output Power: 100~240Vac 50/60Hz 10A MAX
• (two sockets)
• Disconnection Method: Type 1B
• Rated Impulse Voltage: 1500V
• Automatic Operation: 6000 cycles
• Ambient temperature:

Working Environment: room temperature

Storage Temperature: 0℃~60℃/32℉~140℉

• Storage Humidity: 20~80%RH (No freezing or condensation)
• Warranty Period: 2 years
• Measurement Range: 0~9,999 ppm
• Sensing Method: NDIR
• Sensor Working Temperature: 0℃~50℃/32℉~122℉
• Working Humidity: 0~95%RH (non-condensing)
• Calibration Method: CO2 reading calibration(current CO2 concentration Value+CO2 calibration value)
• Error: ± (30 ppm+3% MV)--S01 Sensor
• Response Time (63%): 20 seconds---S01 Sensor
